Technical Parameters
| Profile Series | Three Diamond 60 SERIES |
| Nominal Width | 60 mm |
| Wall Thickness | 2.0mm – 2.5mm |
| Visible Surface | Sleek Chamfered Design |
| Gasket Material | EPDM Dual-Compression |
| Reinforcement | Galvanized Steel Compatible |
| Sound Insulation | Up to 34 dB |
| U-Value | 1.3 - 1.8 W/m²K |
Residential & Commercial Excellence
60 SERIES
60 SERIES

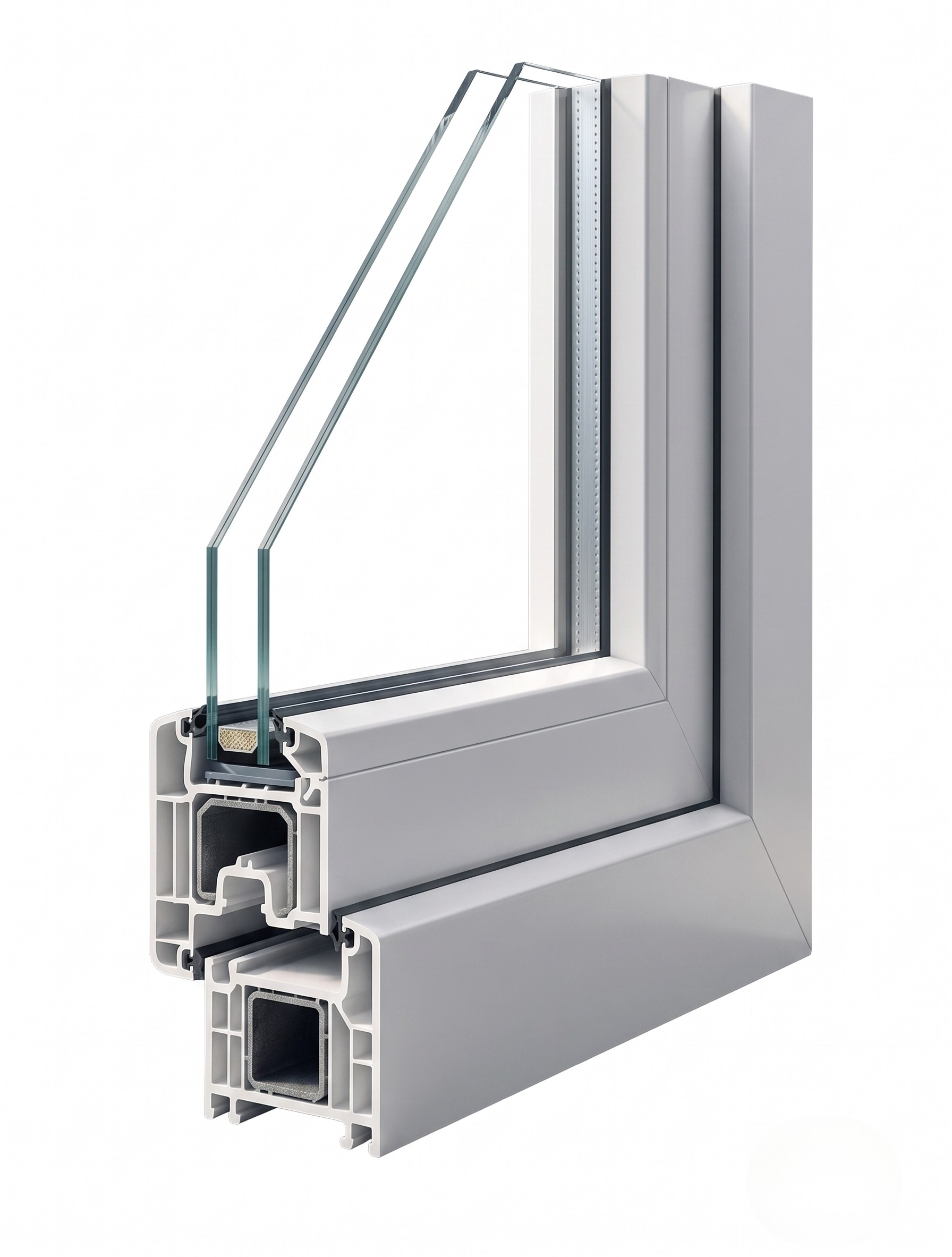

Casement System
Our 60 SERIES Casement system is engineered for maximum performance and timeless aesthetics. Designed specifically for South Indian climates, it features high UV stability and multi-point locking compatibility for ultimate security and weathersealing.
Wind Resistance
Class 4 Verified
Water Tightness
High Performance
Security
Multi-Point Lock
Noise Cut
34 dB Reduction
